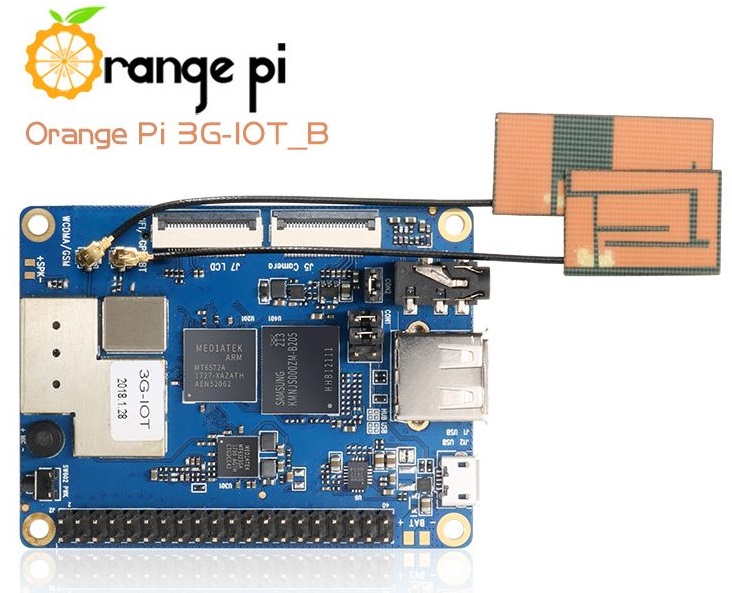

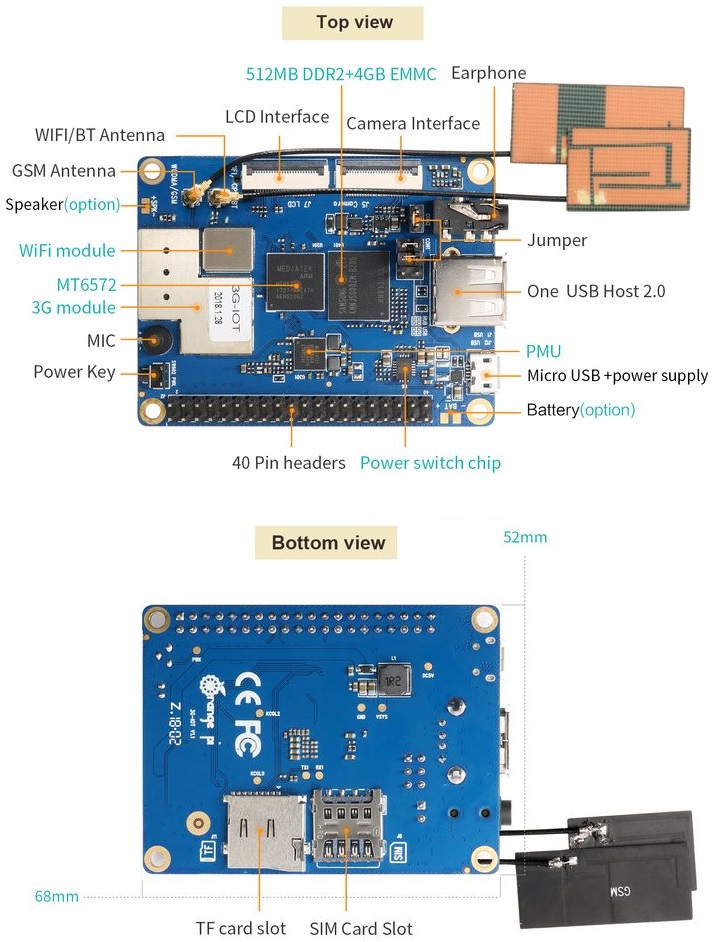

It's an open-source single-board computer. It can run Android 4.4 Image. It uses the MTK serial of MT6572 SoC, and has 512MB DDR2.
Specifikace:
| Processor | MT6572 |
| CPU | Dual Core ARM® Cortex-A7, Main frequency up to 1.2GHz |
| GPU | • ARM Mali-400MP1 GPU |
| Memory |
512MB DDR2 |
| Emmc |
4GB EMMC Flash |
|
Wireless |
WIFI / BT / FM / GPS Four in one |
|
Radio frequency |
GSM: 850/900/1800/1900 WCDMA: B1/B2/B5/B8 TD-CDMA CDMA2000 |
|
Display |
FWVGA(FPC zif Connector) |
|
Capacitance touch |
Support (FPC zif Connector) |
|
Camera |
MIPI Connector |
|
SIM Card |
mini Single SIM Card |
|
TF Card |
Support hot-plugging |
| Audio | Earphone: For audio input / output Mic: For audio input |
|
USB |
One USB Host, one Micro USB |
| LED |
Red for power indicator, Green for status indicator |
| Key |
Power button(SW602) |
|
Low-level peripherals |
40pin Expansion Headers: GPIO 1.8V, SPI × 2 , I2C × 3, UART×2 |
|
Power Supply |
Micro USB(5V/2A)，Battery(Optional) |
|
OS |
Android 4.4 |
|
Programming support |
C, C++, Kotlin, Java, Shell, Python, etc |
| Size |
52mm × 68mm |
| Weight | 25.5g |
