Rock Pi 4 SATA HAT Penta NAS

Model: Rock_SATA-Quad_Hat

Product information "Rock Pi 4 SATA HAT Penta NAS PCB"

Build your NAS based on Rock Pi 4 with up to 5 HDD/SSD and up to 100TB capacity

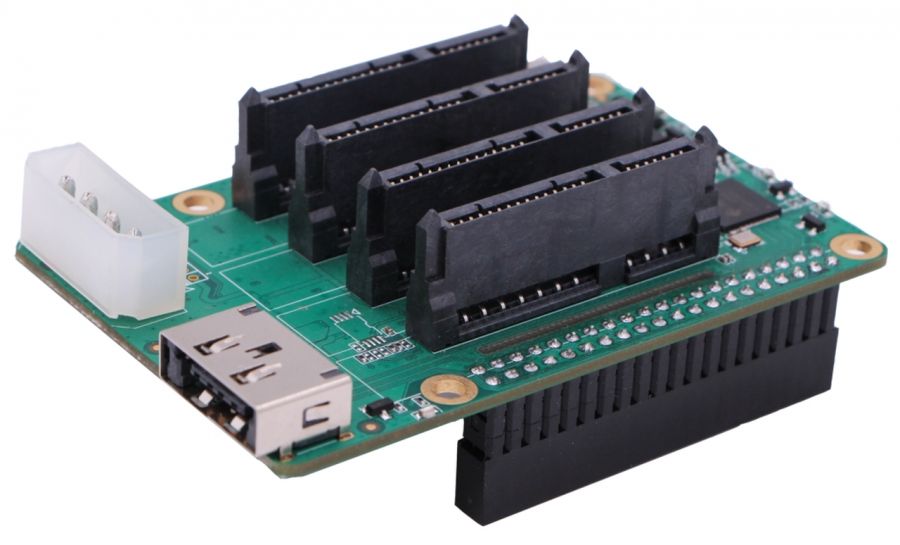

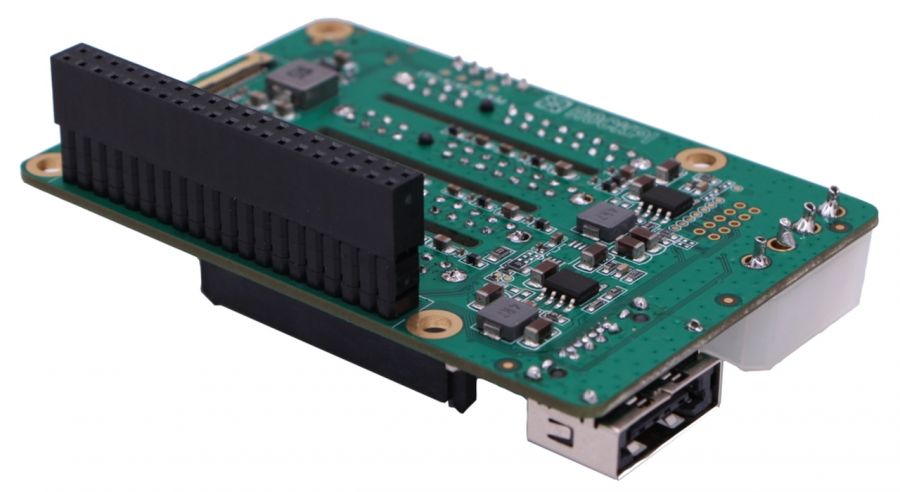

The Penta SATA HAT utilizes the M.2/PCIe interface on Rock Pi 4 to provide up to 5 SATA ports. This HAT works only with Rock Pi 4 mounted on the heat sink.

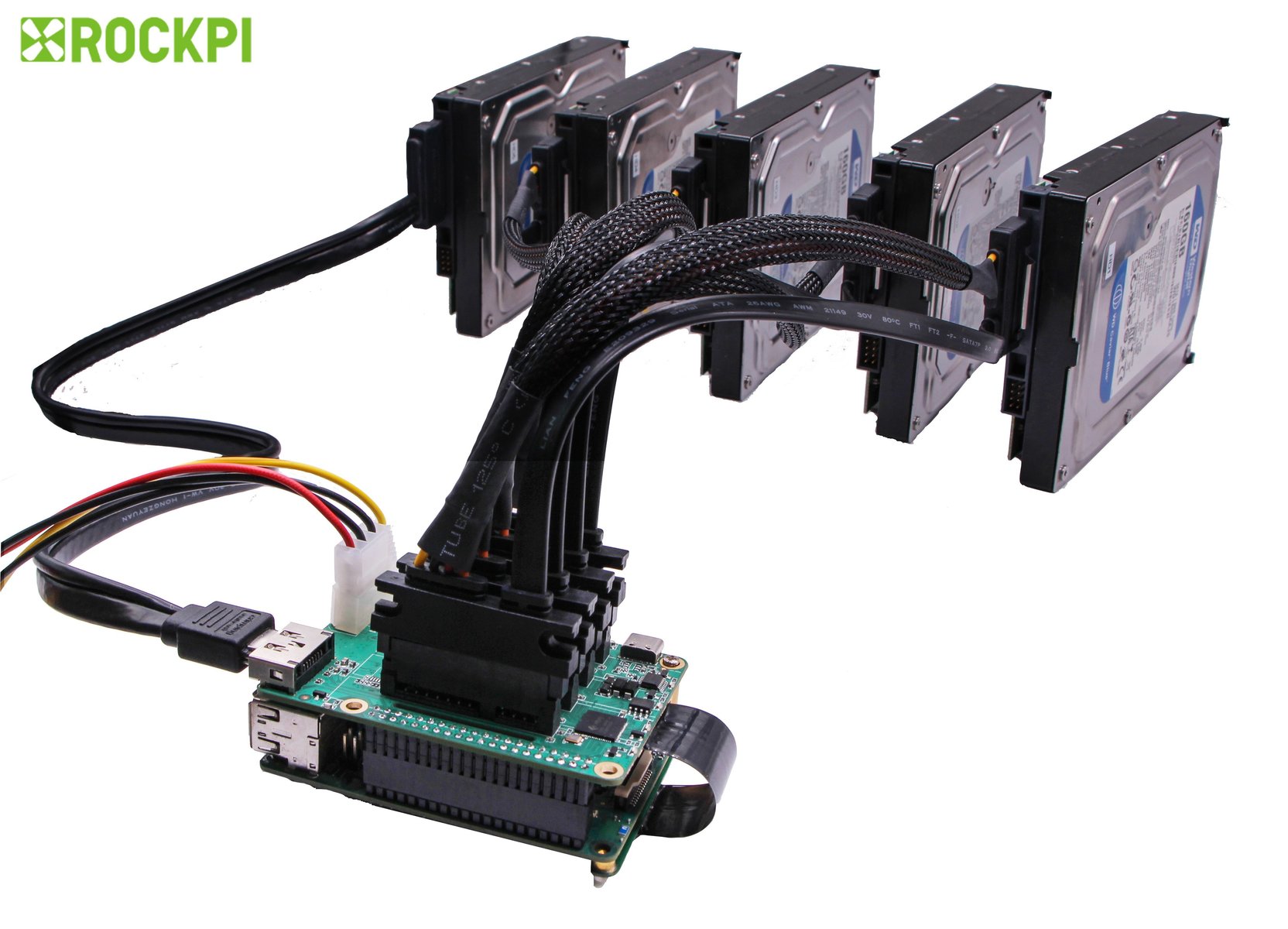

  • Up to 5x HDD/SSD, 2.5inch and 3.5inch storage is supported, max storage 100TB
  • 4x SATA
  • 1x eSATA with power
  • utilizes two lanes of the PCIe 2.1 bus on Rock Pi 4
  • DC power input with support for both 2.5inch drives and ROCK Pi 4
  • External standard ATX power supply support for 3.5inch HDD
  • HDD suspend mode support
  • Software RAID 0/1/5 support
  • Optional PWM control fan for HDD heat management
  • Optional OLED display for IP / Store information
  • PLEASE NOTE: You need to order the heat-sink with the Rock Pi 4 otherwise the Penta HAT can not be mounted on top!

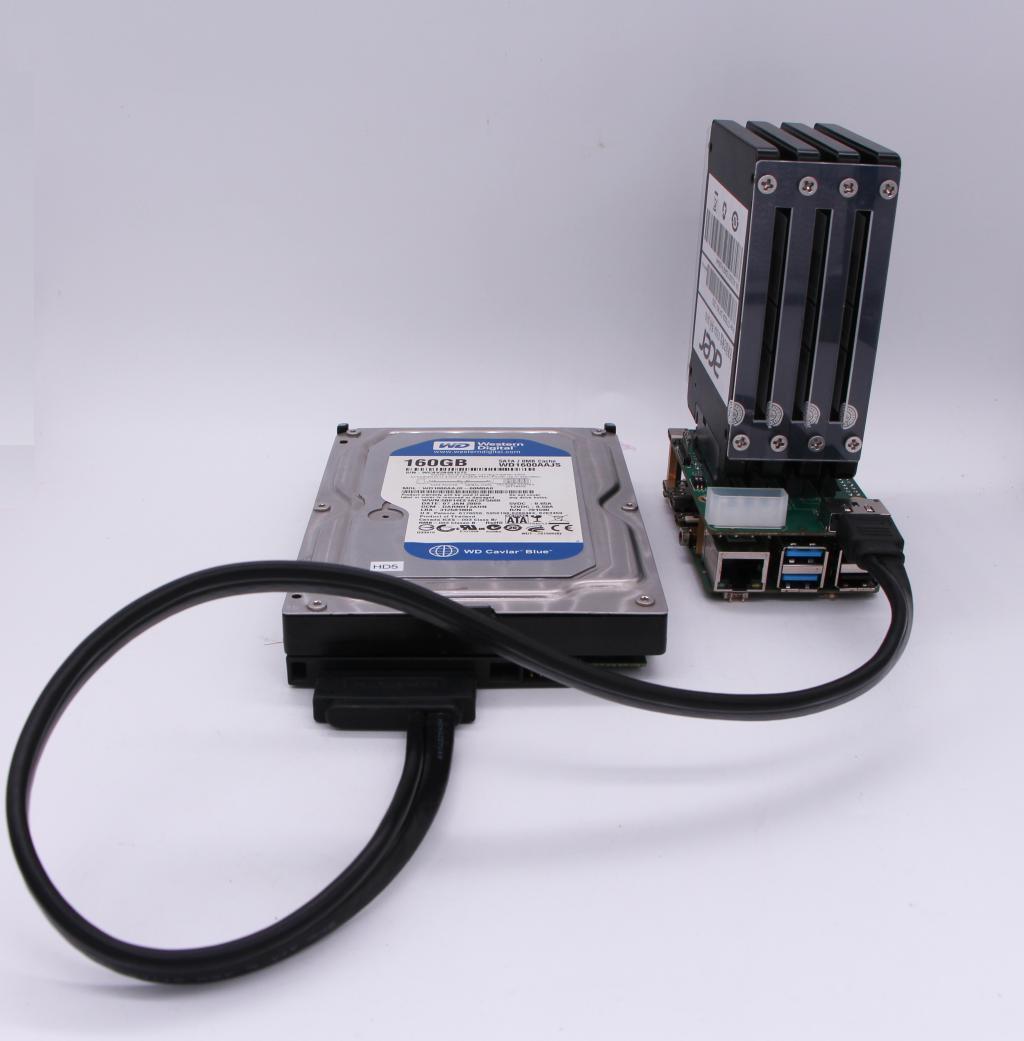

  • To fully take advantage of the 5th SATA port, an eSATA connector was implemented which can be exported e.g. out of the case.
  • The eSATA connector provides both data and power.
  • It can directly drive a 3.5inch HDD via a single cable.


The Penta SATA HAT is powered by the JMB585 with 2 lanes 5Gbs PCIe buses with up to 10Gbps bandwidth. With 5 SSD's configured in Raid0 mode, speed of up to 803MB/s can be achieved.

Product Content:

  • Penta SATA HAT board
  • M.2 interface board with high speed Ribbon connector cable

Data sheet: EN
