AIO-3399C 2GB/8GB

AIO-3399C 2GB/8GB

NOVINKA

Quad-Core High-Performance Board.

4655 Kč s DPH

Import kód: 10841

Dostupnost: Skladem

Výrobce: briv.cz

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Specification

CPU

RK3399,Dual-core(Cortex-A72)+Quad-core(Cortex-A53), frequency up to2.0 GHz

GPU

Quad-core ARM Mali-T860

Support OpenGL ES 1.1/2.0 /3.0, OpenVG1.1, OpenCL, Directx11

 DDR

 2GB / 4GB Dual-Channel LP DDR4

 Storage

 8GB -128GB High-SpeedeMMC、TFCard Slot

 Network

 RJ45interface Gigabit Ethernet

On-board WIFI/BT module

Support 2.4GHz / 5GHz dual-band WiFi,802.11a/b/g/n/ac protocol

Support Bluetooth 4.1(support BLE)

Mini PCIe(Used to expand 3G/4G modules, use with Micro SIM card slot)

Multimedia

 Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps

1080P Multi-format video decoding(VC-1, MPEG-1/2/4, VP8)

Support the encoding of 1080P videos with H.264 and VP8 formats

Video post processor: deinterlacing, denoising, edge/ detail/ color optimization

 Display

 Dual VOP: support 4096X2160 and 2560X1600

HDMI2.0 support 4K 60Hz display, support HDCP 1.4/2.2

Support DisplayPort 1.2(4lines, Maximum support4K 60Hz)

Support eDP 1.3(4 lines, 10.8Gbps)

Can directly drive multiple resolutions eDP interfaceLCD screen

Support dual 6/8-bit LVDS interface, up to 24-bit 1920×1200 resolution

Support Rec.2020 and Rec.709 color gamut conversion

 Interface

 Dual ISP pixel processing capability up to 13MPix/s,

Supports imultaneous input of two-way camera data

Support USB3.0 HOST, Type-C interface

1 x ADC, SPI / GPIO, LED x 2, I2C x 1, Gravity sensor x 1(Scalable)

 SD Card

 Support SD Card

 RTC

 Support RTCreal-time clock

 On/Off

 Support timer switch

Audio

 1 x PHONE, 1 x LINE-IN, 1 x LINE-OUT, Microphone (left and right channel)

 USB

 Type-C (OTG), 1 x USB3.0, 4 x USB2.0(interface x 2, socket x 2)

 Key

 Power Key (Key x 1,socket x 1), Recover Key (Key x 1, socket x 1)

Serial port

 RS232×1, RS485×1, Debug serial port x 1, Onboard 2-way TTL port

 IR

 With a one-way infrared receiver, Support infrared remote control

 OS

 Support Android\Linux\Ubuntu system

 Power

DC 12V-2A (DC5.5 x 2.1mm)

Support for external connection(Power socket x 1)

 Size

 126 mm× 91.3mm



d

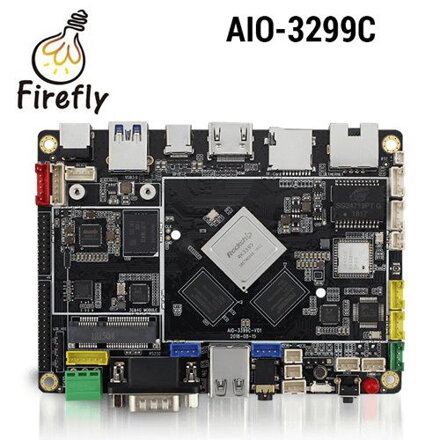

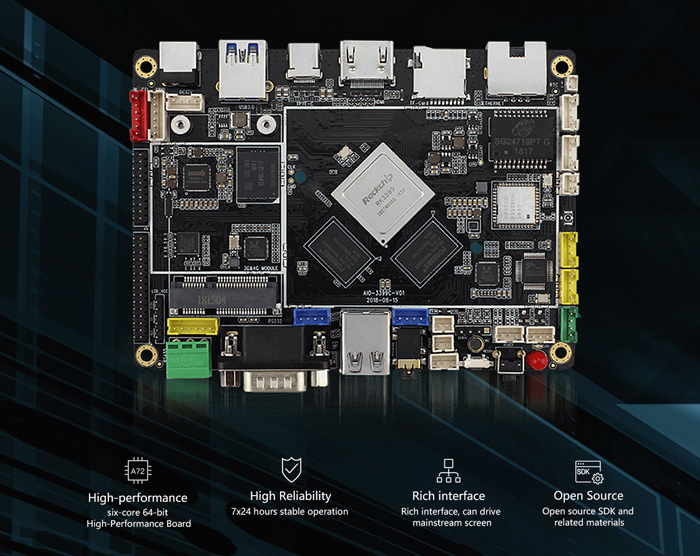

AIO-3399C Quad-Core High-Performance Board

It adapts Rockchip 64-bit six-core processor, with powerful hardware decoding capabilities and supporting 4K hardware decoding.

Featuring a variety of display output interfaces, it can directly drive multiple resolutions eDP interface LCD screen.

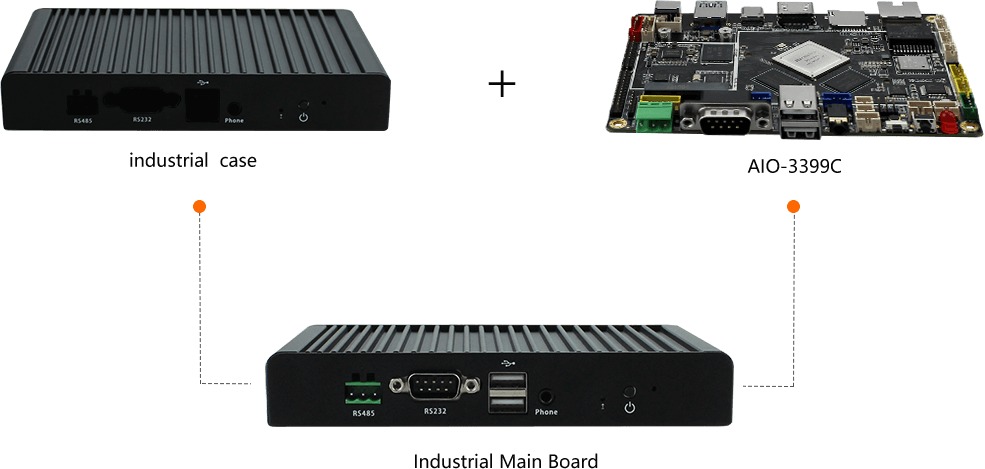

AIO-3399C is combined with an industrial-grade case for flexible insertion into a wide range of industries to realize fast product landing.

f

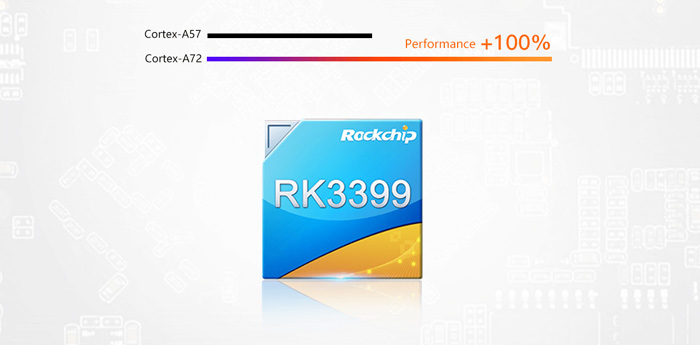

High-end Core Processor

AIO-3399C adapts ARM Cortex-A72 architecture and six-core 64-bit high-performance processor with frequency up to 2.0GHz, and integrate quad-core Mali-T860 GPU.

Its processing performance is improved by 100%, faster and more powerful than Cortex-A57.

c

Powerful Hardware Decoding Capability

It supports dual LVDS, EDP, HDMI, DP1.2 and other display output interfaces, dual-screen identical display/dual-screen differential display, and H.265 HEVC, VP9 and H.264 encoding, 4K HDR, maximum support for 4K hardware decoding.

AIO-3399C can directly drive multiple resolutions eDP interface LCD screen.

d

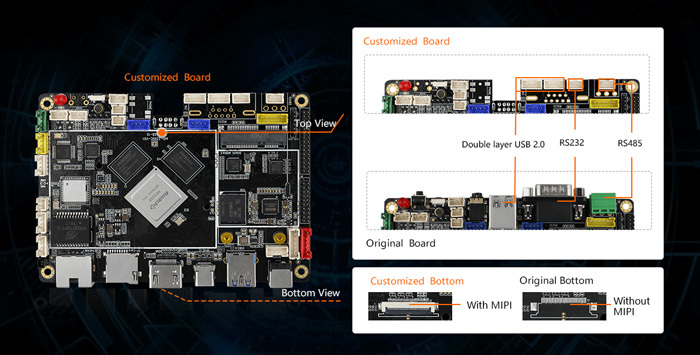

Customized Interface

The interface can be flexibly customized to make it easier to meet project development and improve the product potential.

d

Excellent Industrial Applicability

Equipped with industrial-grade case, fanless and efficient heat dissipation design and multiple installation methods, which can be quickly and flexibly embedded into various smart devices.

s

Open SDK

Open SDK, tutorials, technical materials and development tools to make development easier and more convenient.

d

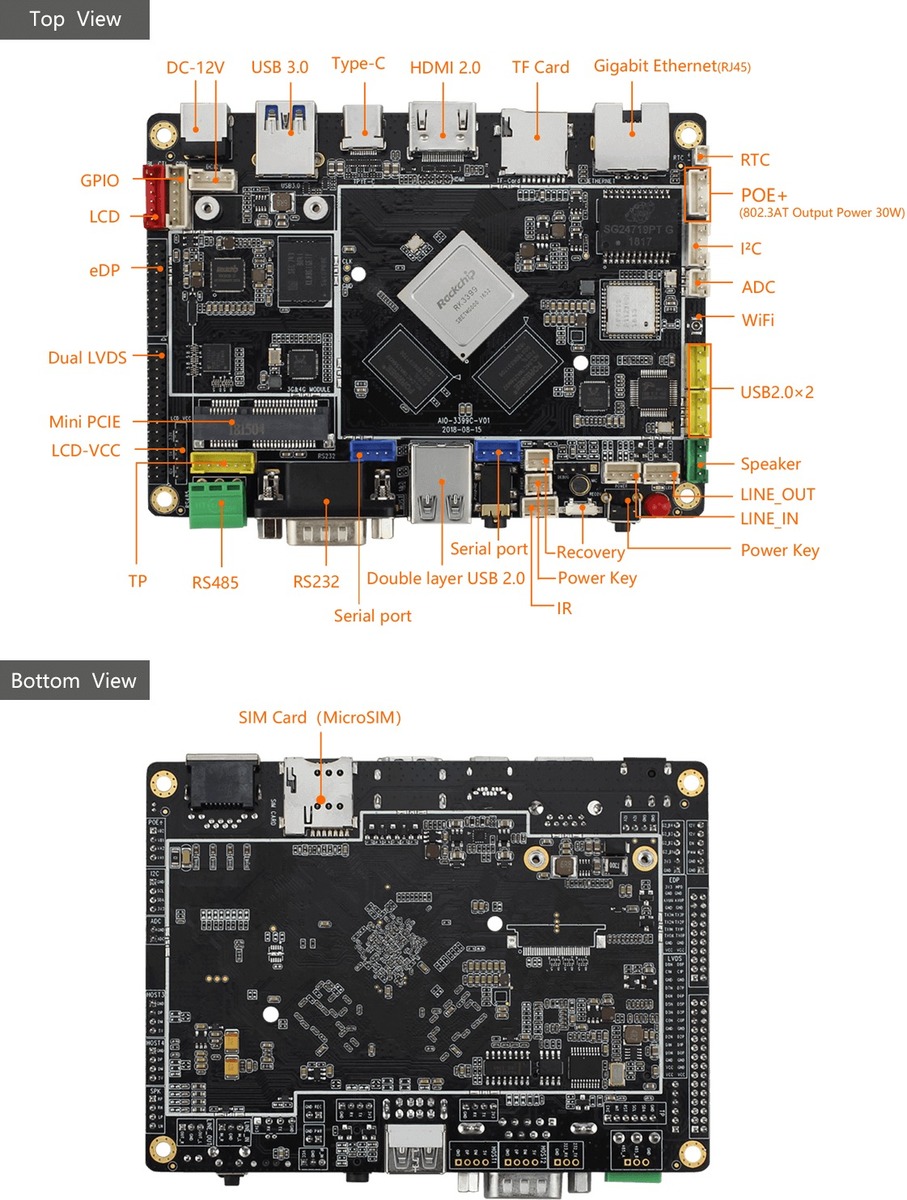

Rich External Interface

AIO-3399C can be powered by POE+ (802.3 AT, output power 30W) enhanced Ethernet.

It has rich external interfaces, supports RS232, RS485 interface, and onboard 2-way TTL port, convenient to connect various industrial equipment and easy to achieve product development.

s

Applications

AIO-3399C can be applied to various industries.
