AIO-3288C

AIO-3288C

NOVINKA

Quad-Core High-Performance Board. Uses RK3288 quad-core Cortex-A17processor, supports 4K hard decoding, has a rich expansion interface, as well as compatible with mainstream displays.

4011,15 Kč s DPH

Import kód: 10840

Dostupnost: Skladem

Výrobce: briv.cz

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

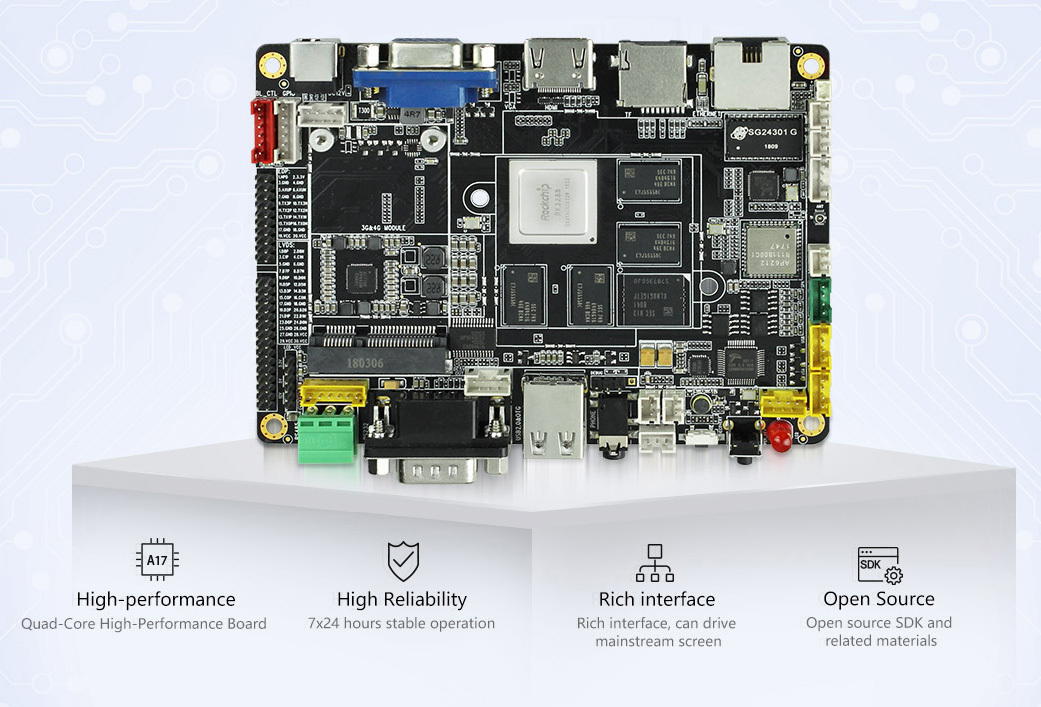

AIO-3288C Quad-Core High-Performance Board

t

Uses RK3288 quad-core Cortex-A17processor, supports 4K hard decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold processand has passed various pressure tests, which can be applied to the productdirectly

s

Specification:

 CPU

RK3288 Quad-core Cortex-A17,frequencyup to 1.8GHz

GPU

Mali-T764 GPU, Support AFBC (Frame Buffer Compression)

Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3

Embedded high-performance 2D acceleration hardware

DDR

2GB dual channel DDR3

Memory

8GB eMMC 5.1、Support MicroSD (TF) Card

Multimedia

Support 4K 10bits VP9/H265/H264 video decoding, up to 60fps

1080P multi-format video decoding (VC-1 MPEG-1/2/4, VP8)

Support the encoding of 1080P videos with H.264 and VP8 formats

Video post processor: deinterlacing, denoising, edge/ detail/ color optimization

 Display

Dual LVDS:Support 1080P@60HzLCD screen

   eDP1.1:Support 4K×2K@32fps

HDMI 2.0:Support 4K 60Hz display,Support HDCP 1.4/2.2

VGA interface(extensible):Support 1080P@60Hz Output

 Audio

1 x HDMI

1 x Headset

1 x Double channel speaker(8Ω/2W)

 Camera

2x MIPI-CSI Camera Port

 Interface

GPIO、eDP、LVDS、USB、ADC、I2C、Key、Voltage input and output interface

Network

10/100/1000Mbps Gigabit Ethernet(RJ45 interface)

On-board WIFI/BT module

Support Single frequency WiFi 2.4GHz Support 802.11 b/g/n protocol

 Mobile Network

Support WCDMA,EVDO,4G universal version

 RTC

Built-in RTC real-time clock (timer switch supported)

USB

1×USB_OTG, 1×USB_HOST, 3×USBsocket

 Serial port

1×RS232(hardware flow control) , 1×RS485

IR

With a one-way infrared receiver, Support infrared remote control

 OS

Android 5.1、Linuxoperating system

 Upgrade

Support for TF card / USB upgrade

 Input power

12V/2A

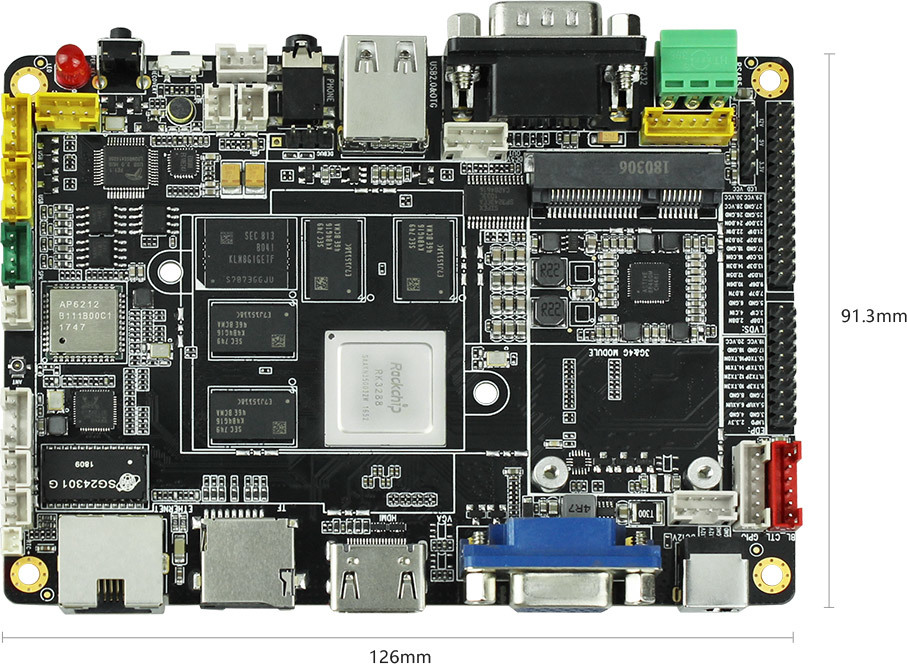

 Size

126 mm× 91.3mm

High-performance Core Configuration

AIO-3288C with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.

x

Powerful Hard Decoding Capability

It supports LVDS/EDP/MIPI/HDMI/VGA display interfaces, 4K hard decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100 inch display directly.

s

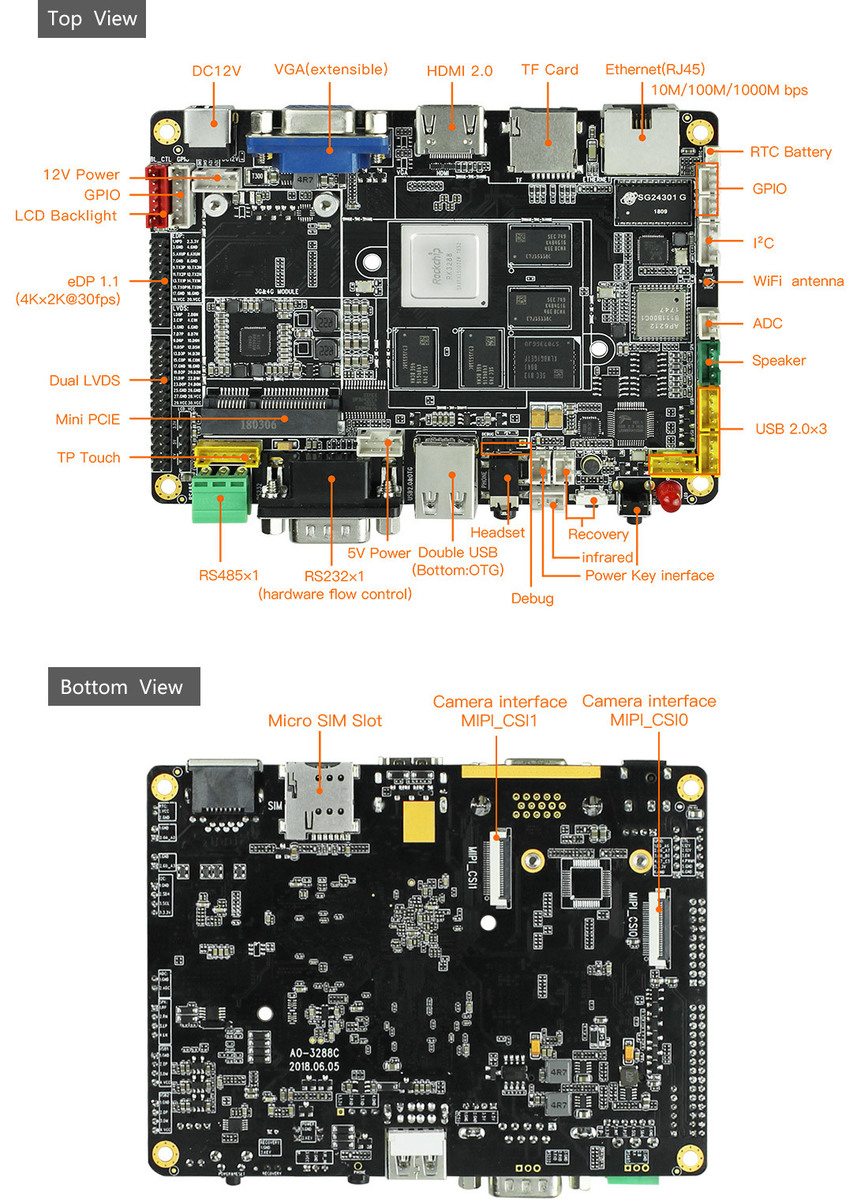

Rich Expansion Interface

With RS232 serial port (hardware flow control), RS485, dual LVDS, EDP, HDMI, VGA (expandable), 2-way CSI MIPI camera interface, 3G/4G LTE (Mini-PCIe) module and other interfaces to meet product development demand.

s

Open SDK

Open SDK, tutorials, technical materials and development tools to make development easier and more convenient.

s

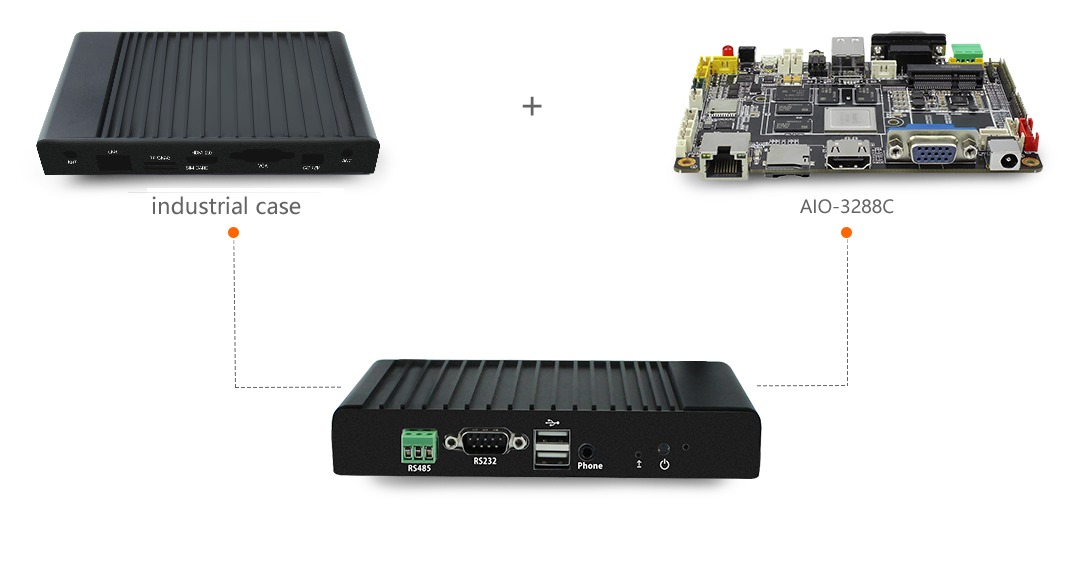

Combined With Case

Combined with the industrial case to embed various smart devices easily.

d

Application

AIO-3288C can be directly applied to a variety of products: Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer

d
