Popis NanoPi K1 Plus vývojová deska Allwinner H5

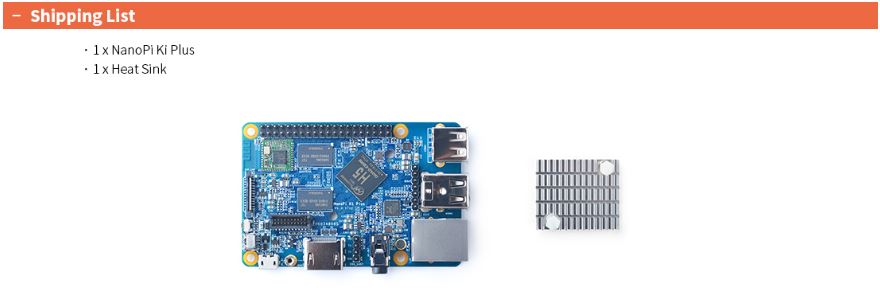

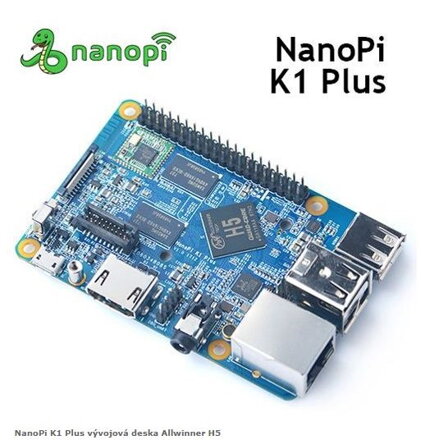

NanoPi K1 Plus vývojová deska Allwinner H5 2GB DDR3 RAM sada s chladičem

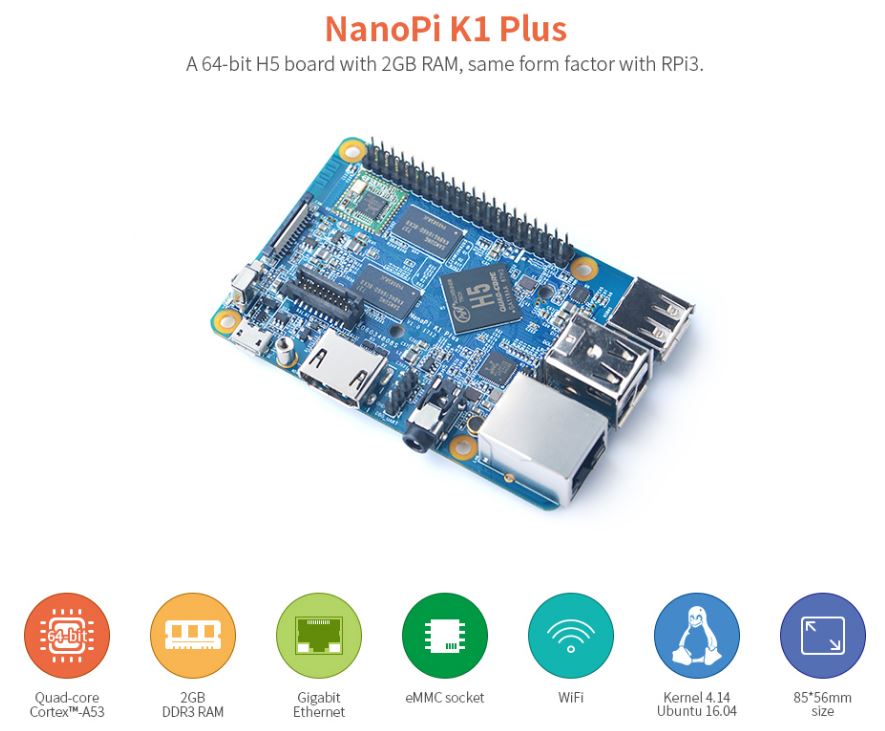

The NanoPi K1 Plus uses the Allwinner 64-bit quad-core Cortex™-A53 H5 SoC. It can run either a 64-bit OS or a 32-bit OS.

It has NEON multi-media engine and a hex-core Mali450 GPU. It supports various video formats and has strong HD encoding/decoding capabilities.

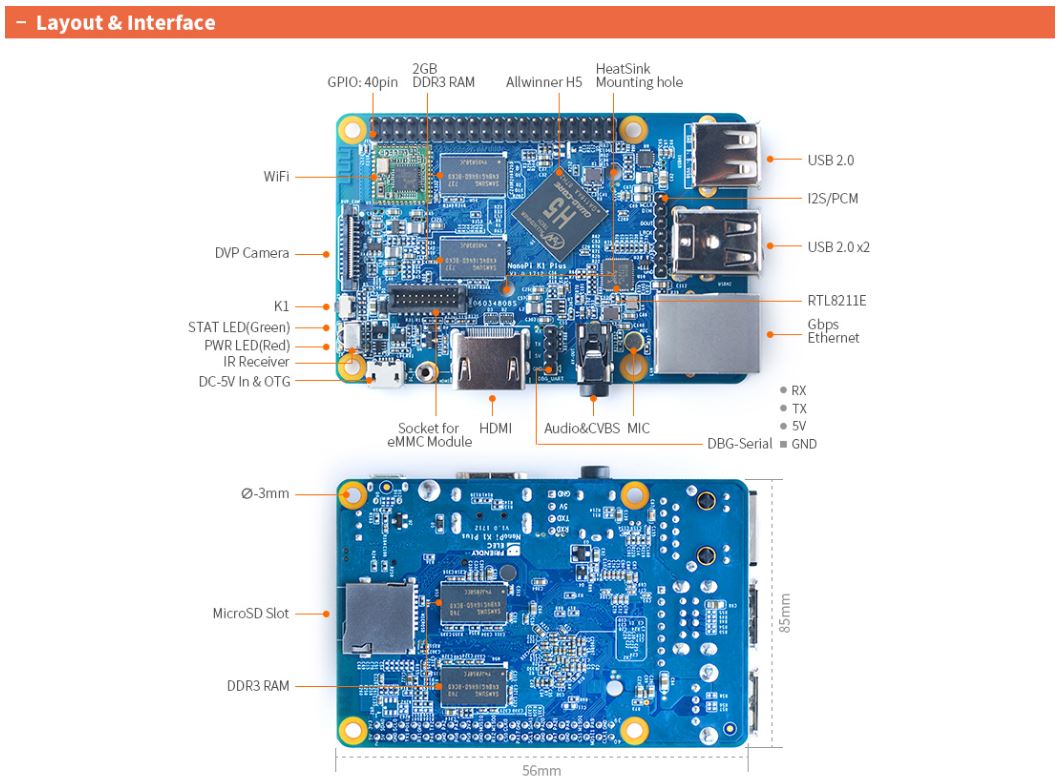

The NanoPi K1 Plus has 2GB DDR3 RAM, onboard WiFi, DVP camera interface, Gbps Ethernet, USB, HDMI, infrared remote control, 3.5mm audio jack, I2S and etc. It can boot from a TF card and supports an external eMMC module.

The NanoPi K1 Plus has the same dimension as RPi 3. Its 40-Pin GPIO pin-header is compatible with RPi 3's GPIO pin-header. It works with any RPi housing.

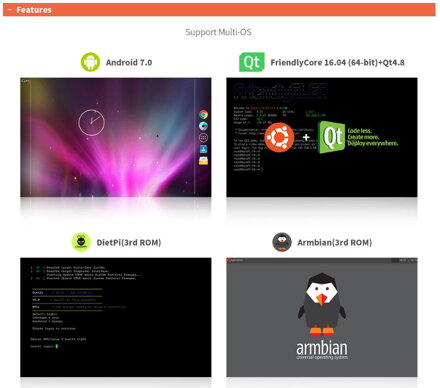

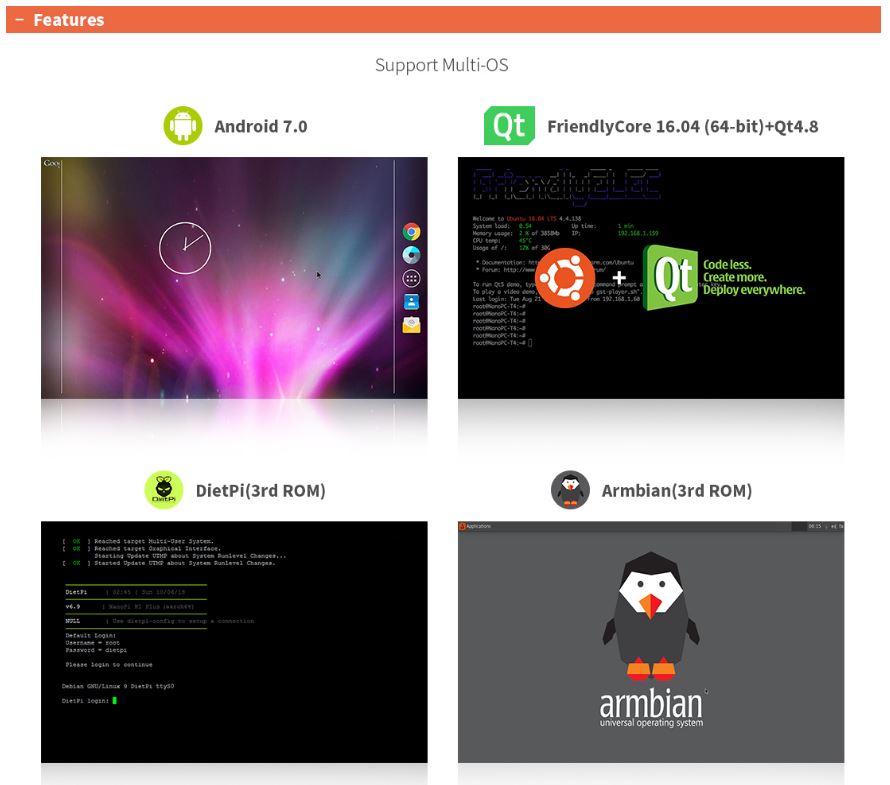

A Ubuntu Core image and an Armbian image are ready for the NanoPi K1 Plus.

Specifikace:

  • CPU: Allwinner H5, Quad-core 64-bit high-performance Cortex™-A53
  • GPU: Hexa-core Mali450
  • DDR3 RAM: 2GB
  • Ethernet: 10/100/1000M Ethernet using RTL8211E IC
  • Wireless: 802.11 b/g/n and onboard PCB antenna
  • Infrared: Onboard infrared receiver
  • Audio: 3.5mm audio jack/Via HDMI
  • Mic: onboard microphone
  • eMMC: onboard eMMC interface
  • I2S: onboard I2S interface(7Pin, 2.54mm pin-header)
  • MicroSD Slot: MicroSD card slot
  • USB Host: 3 x USB 2.0 Host, type A port
  • DVP Camera interface: 24-Pin, 0.5mm pitch FPC seat
  • MicroUSB: 1 x USB 2.0, OTG, for power input and data transmission
  • HDMI: HDMI Type-A port. It supports 4K@30fps dsplay
  • Video Output: HDMI 1.4. It supports 4K@30fps display, CVBS
  • GPIO Pin-header: 40 Pin,2.54mm pitch pin-header containing I2C, GPIO, UART, PWM, SPDIF, SPI and etc
  • Serial Debug Port: 4Pin, 2.5mm pitch pin-header
  • Button: 1 x GPIO button(user configurable)
  • LED: 1 x power LED and 1 x status LED
  • Power Interface: MicroUSB

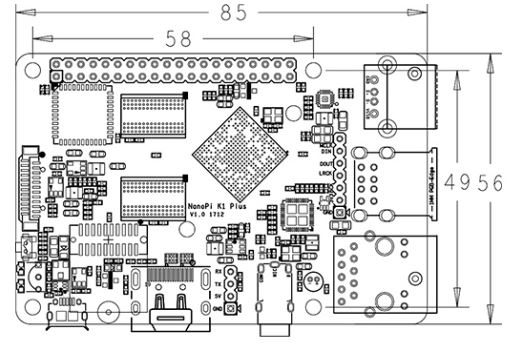

  • PCB Size:56 x 85mm, 6-layer, ENIG
  • Power: DC 5V/2A
