NanoPi Fire3 vývojová deska S5P6818 1GB DDR3 RAM

1495 Kč

Import kód: 50524

Dostupnost: Skladem

Výrobce: FriendlyARM

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Popis NanoPi Fire3 vývojová deska S5P6818 1GB DDR3 RAM

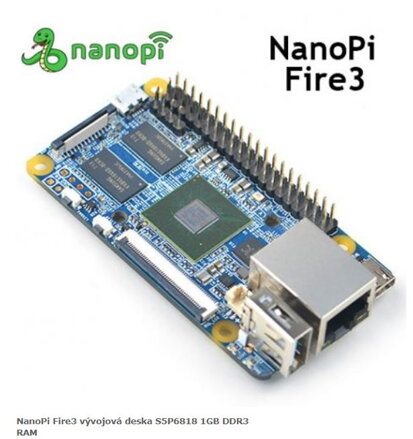

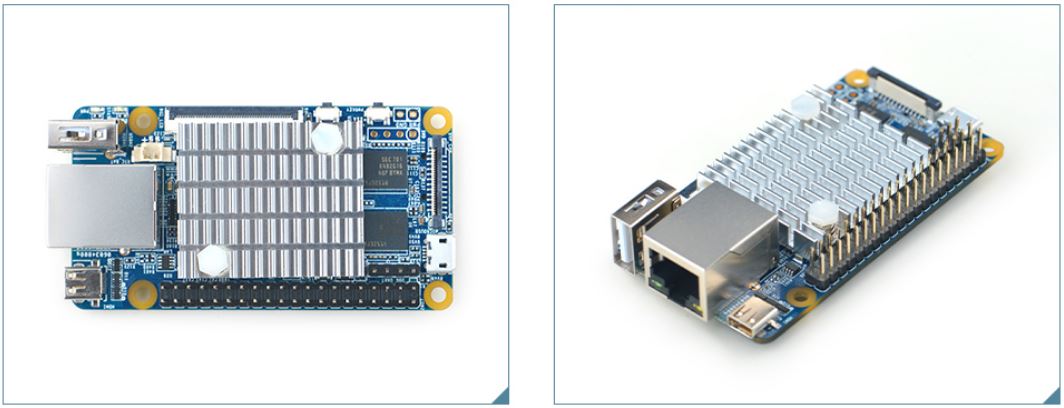

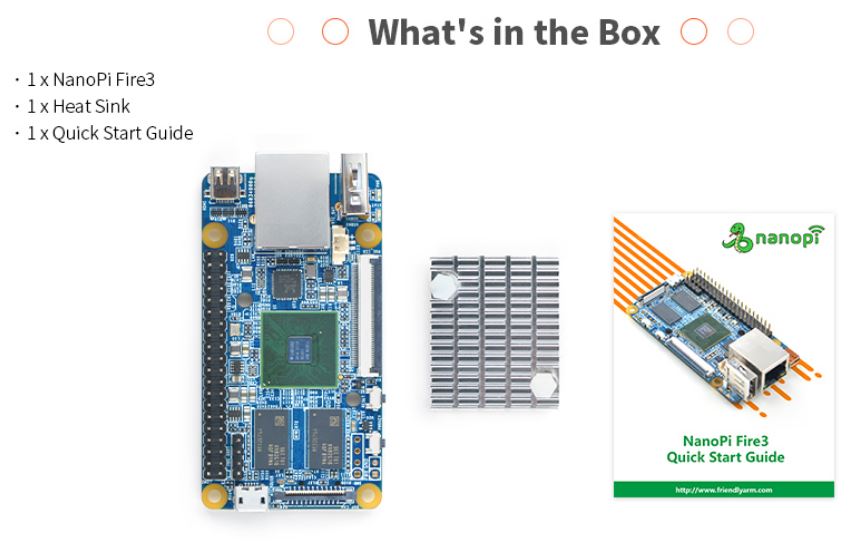

NanoPi Fire3 vývojová deska S5P6818 1GB DDR3 RAM sada s chladičem

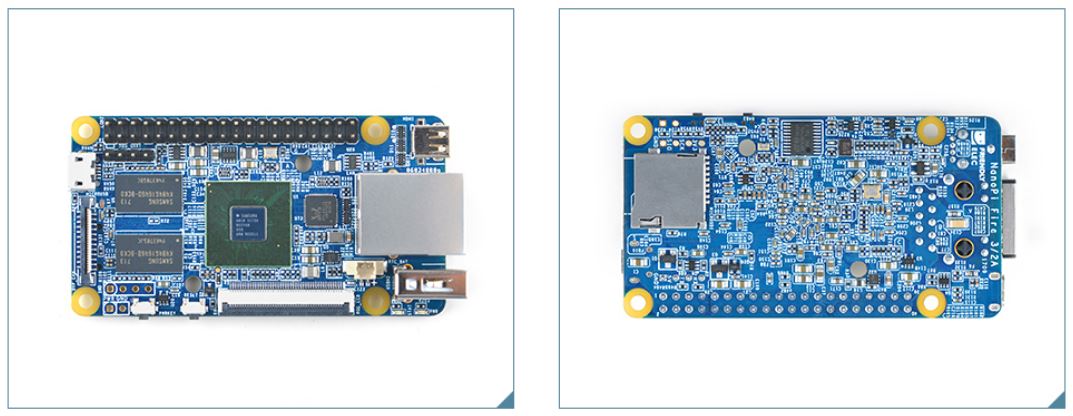

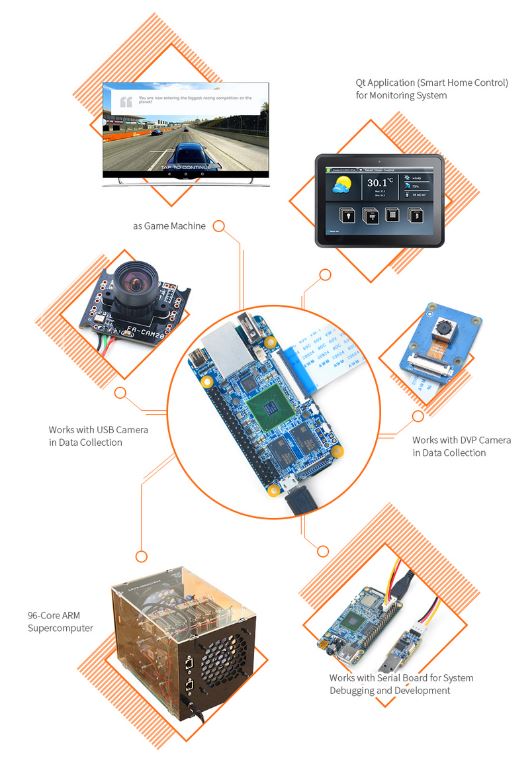

The NanoPi Fire3 is a high performance ARM Board developed by FriendlyElec for Hobbyists, Makers and Hackers for IOT projects. It features Samsung's Cortex-A53 Octa Core S5P6818@1.4GHz SoC and 1GB 32bit DDR3 RAM.

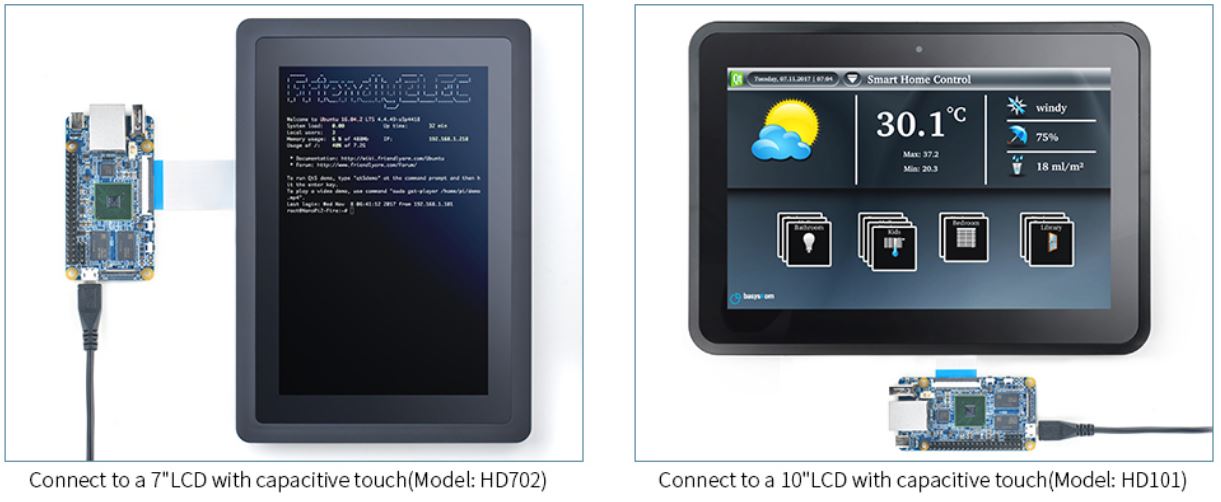

It has a Gbps Ethernet port. It boots Android and Debian from a TF card. It integrates an HDMI and LCD interface. Its adoption of the Raspberry Pi's GPIO pin header makes it compatible with both Raspberry Pi's external GPIO modules and Arduino's shield boards. Its PCB dimension is 75 x 40 mm.

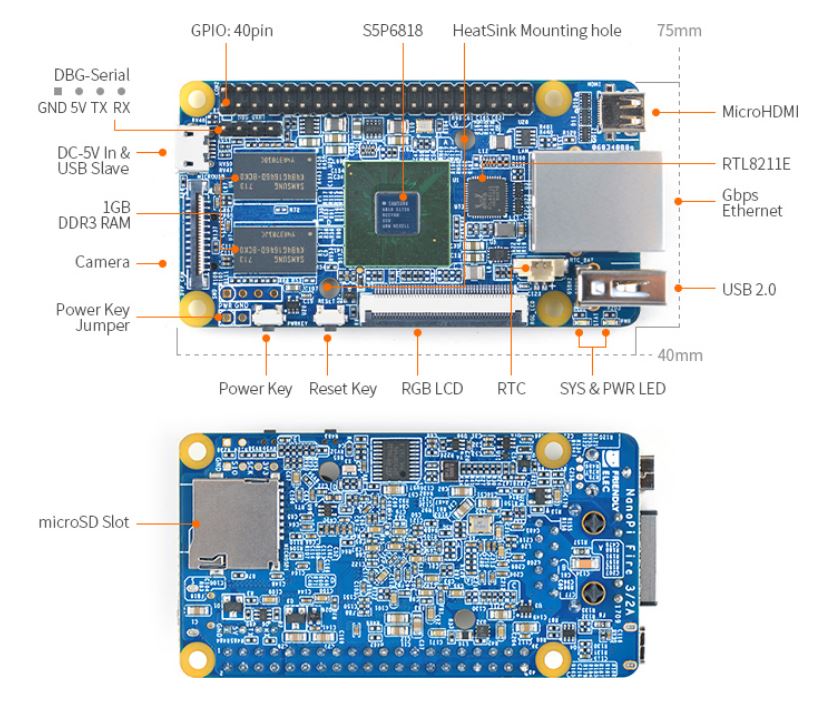

Specifikace:

  • CPU: S5P6818, 1.4GHz
  • RAM: 1GBMB DDR3
  • Connectivity: Gbps Ethernet port
  • PMU Power Management: Implemented by a Cortex-M0 MCU, support software power-off, and RTC alarm power-on functions
  • USB 2.0 Type A x 1
  • Debug Serial Port/UART0 x 1
  • microSD Slot x 1
  • microUSB x 1: for data transmission and power input
  • LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
  • HDMI: HDMI 1.4A, microHDMI(Type-D), 1080P60
  • DVP Camera Interface: 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C and IO
  • GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc
  • Button: Power Button x 1, Reset Button x 1
  • LED: LED for Power Indication x 1, System LED x 1
  • RTC: RTC Battery Seat

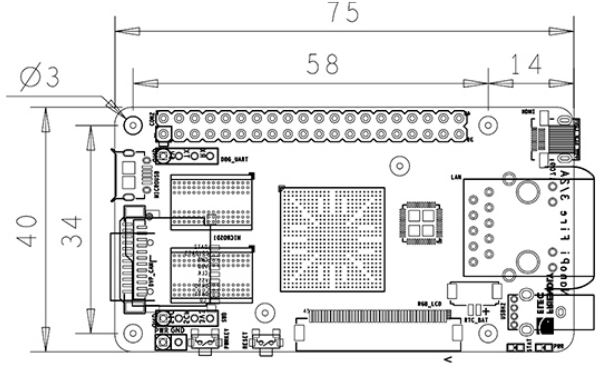

  • PCB Dimension: 75 x 40mm
  • Power: DC 5V/2A
  • Temperature measuring range: -20℃ to 80℃

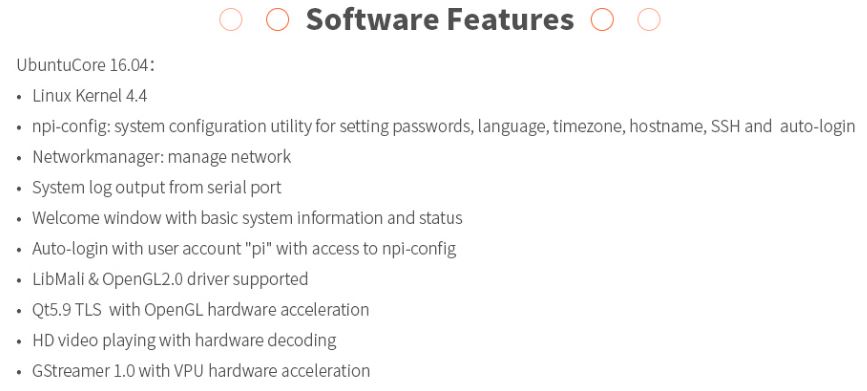

  • OS: Android, Debian and FriendlyCore(Linux Kernel 4.4 + Qt 5.10.0 + OpenGL2.0)
