ANAVI Light pHAT

ANAVI Light pHAT

NOVINKA

Light pHAT je hardware s otevřeným zdrojovým kódem, přídavná deska Raspberry Pi pro ovládání 12 V RGB LED pásky. Deska dále podporuje senzory pro detekci světla, teploty, vlhkosti, rozpoznávání a detekce pohybu.

669 Kč s DPH

Import kód: 11076

Dostupnost: Skladem

Výrobce: Anavi

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Make your Raspberry Pi bright and shiny with an RGB LED strip and ANAVI Light pHAT!

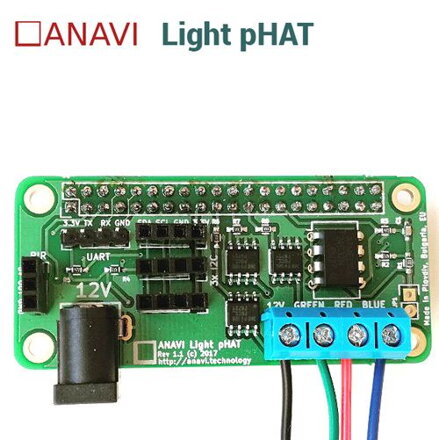

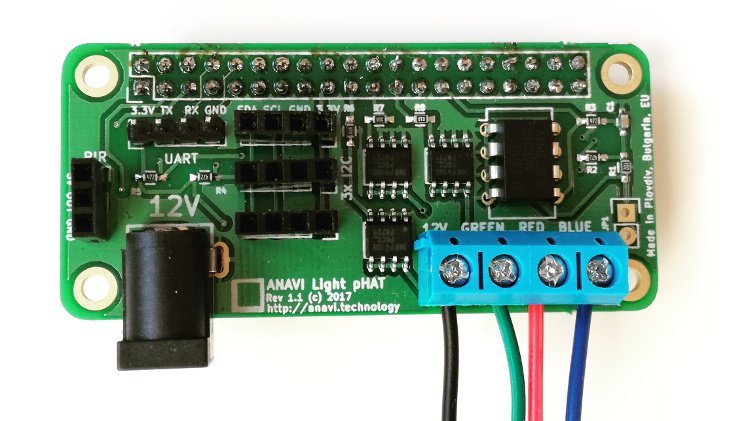

ANAVI Light pHAT is an open source hardware, Raspberry Pi add-on board for controlling a 12 V RGB LED strip. Furthermore, the board supports sensors for light, temperature, humidity, gesture recognition, and motion detection.

c

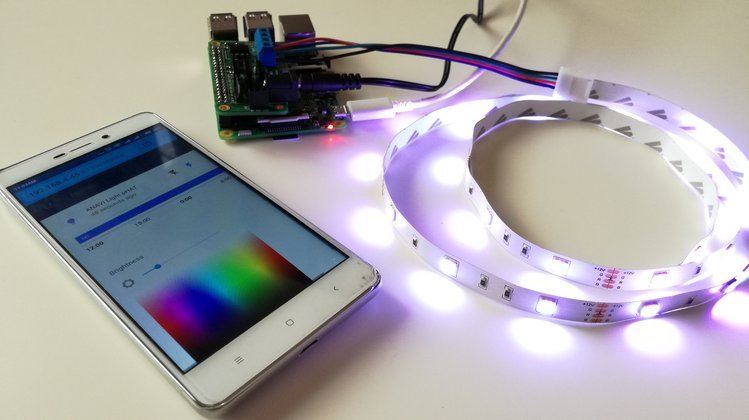

ANAVI Light pHAT is fully compliant with the popular open source home automation platform, Home Assistant. Thanks to ANAVI's open source application, the ANAVI Light pHAT can be easily integrated into Home Assistant as an MQTT JSON Light component.

c

ANAVI Light pHAT was designed using the free and open source application, KiCAD. All source files are available in our GitHub repo. All boards will be manufactured locally in Plovdiv, Bulgaria. Getting started with the add-on board is easy, no soldering is required. A comprehensive user's manual with exact steps for using ANAVI Light pHAT on Raspberry Pi running the Raspbian GNU/Linux distribution will be provided.

Who Needs It and Why?
ANAVI Light pHAT is fun and easy to use. No previous experience is required. You don't need to be a tech whiz to use it. The exact steps for getting started are described in the user's manual. Use your bare hands to assemble it and a screwdriver to connect the RGB LED strip.

ANAVI Light pHAT is fun and easy to use. No previous experience is required. You don't need to be a tech whiz to use it. You can assemble it without any tools, while only a screwdriver is needed to connect your RGB LED strip.

  • Automating lighting with the open source software platform Home Assistant
  • Making a do-it-yourself magic lamp controlled with gestures
  • Making a do-it-yourself unique decorations for the holidays
  • Exploring a project that combines free and open source software with open source hardware

Features & Specifications:

  • Terminal block for attaching 12 V RGB LED strip
  • Slots for up to three plug and play I2C sensor modules
  • Slot for PIR motion sensor
  • UART pins for debugging
  • EEPROM with board manufacturer information and a device tree fragment

In the box: 1x ANAVI Light pHAT board

Compatibility:

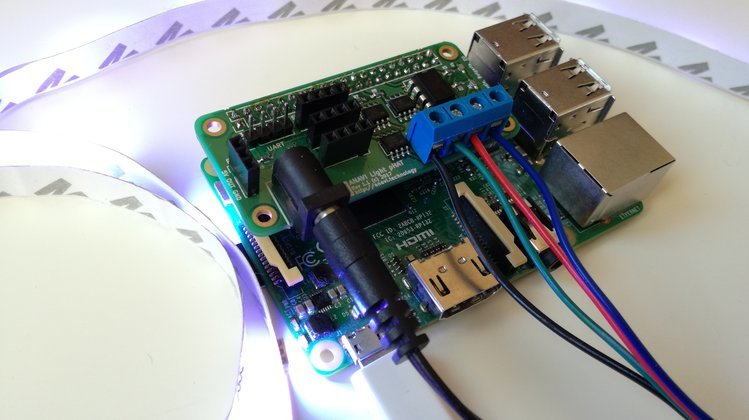

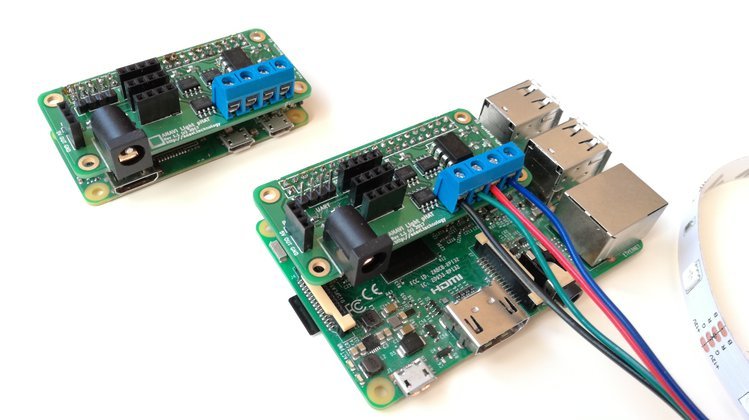

ANAVI Light pHAT works with Raspberry Pi 3, Raspberry Pi 2, Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 0, and Raspberry Pi 0 W.

d

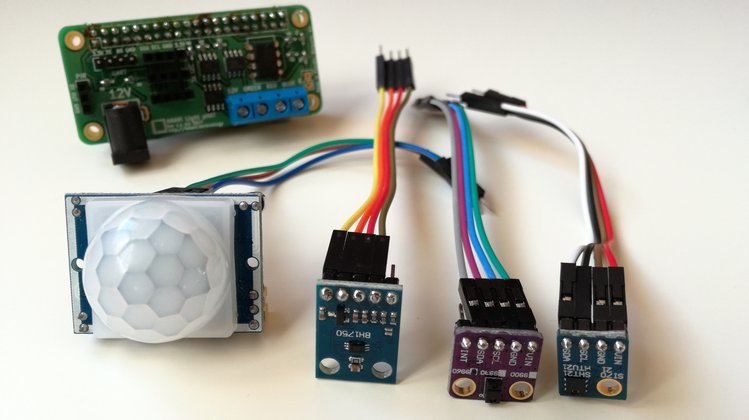

ANAVI Light pHAT officially supports a PIR motion sensor as well as the following I2C modules with:

  • BH1750 sensor for light
  • HTU21D sensor for temperature and humidity
  • APDS-9960 sensor for RGB color and gesture detection

You can also attach any other I2C sensor, but you will have to take care of their software integration.

s

The PIR motion sensor allows you to turn on the lights automatically when someone is passing by. The sensor for temperature and humidity could be used to make a weather station as a secondary function of your Raspberry Pi. The gesture detection sensor is a great addition for defining custom hand gestures for controlling the lights or just making a modern version of Aladdin's magic lamp.
