Airspy R2

Airspy R2 is an advanced open-source software defined radio receiver with adequate dynamic range, capable of sampling 10MHz of spectrum anywhere between 24MHz and 1.8GHz – and even beyond with extensions.

Airspy R2 sets a new level of performance in the reception of the VHF and UHF bands thanks to its low-IF architecture, high quality ADC and state of the art DSP.

The coverage can be extended to the HF bands via the SpyVerter up-converter companion.

The Airspy R2, like its predecessor is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.

For a more complete list of supported software, check the download page.

Supported platforms:

  • Windows Vista, 7, 8, 8.1 and 10 (For Windows XP, please contact the airspy team)
  • Linux
  • *BSD
  • OSX

Technical specifications:

  • Continuous 24 – 1800 MHz native RX range, down to DC with the SpyVerter option
  • 3.5 dB NF between 42 and 1002 MHz
  • Tracking RF filters
  • 35dBm IIP3 RF front end
  • 12bit ADC @ 20 MSPS (10.4 ENOB, 70dB SNR, 95dB SFDR)
  • 10MSPS IQ output
  • Experimental 2.5MSPS IQ output for low power devices (Raspberry Pi, Odroid, etc.)
  • Up to 80 MSPS when using custom firmware
  • Cortex M4F @ up to 204MHz with Multi Core support (dual M0)
  • 0.5 ppm high precision, low phase noise clock
  • 1 RTC clock (for packet time-stamping)
  • External clock input (10 MHz to 100 MHz via MCX connector) – Ideal for phase coherent radios
  • 10 MHz panoramic spectrum view with up to 9MHz alias/image free
  • IQ or Real, 16bit fixed or 32bit float output streams
  • No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
  • Extension ports: 16 x SGPIO
  • 1 x RF Input (SMA connector, up to 30kV ESD protection)
  • 1 x RF Output (Loopthrough, U-FL, 15kV ESD protection)
  • 2 x High Speed ADC inputs (up to 80 MSPS, U-FL, DC coupled, 15kV ESD protection)
  • 4.5v software switched Bias-Tee to power LNA's and up/down-converters
  • 8 x programmable high speed gpio's up to 100MHz
  • 3 x programmable synchronized clock outputs up to 160MHz
  • 1 x core CPU clock output
  • 1 x reset pin
  • 2 x regulated +5.0 and +3.3v pins
  • 1 x JTAG header
  • No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10
  • Operating temperature: -10°C to 40°C

Minimum hardware requirements:

  • 3rd gen Intel i3 2.4 GHz CPU or equivalent
  • 2GB of RAM (to run your own OS, airspy barely needs 1MB of memory)
  • High speed USB 2.0 controller

Supported Software:

Developer API:

  • Open source multi-platform libairspy and airspy host tools at github
  • Open source airspy firmware at github
  • Linux kernel SDR API (by Antti Palosaari) at github

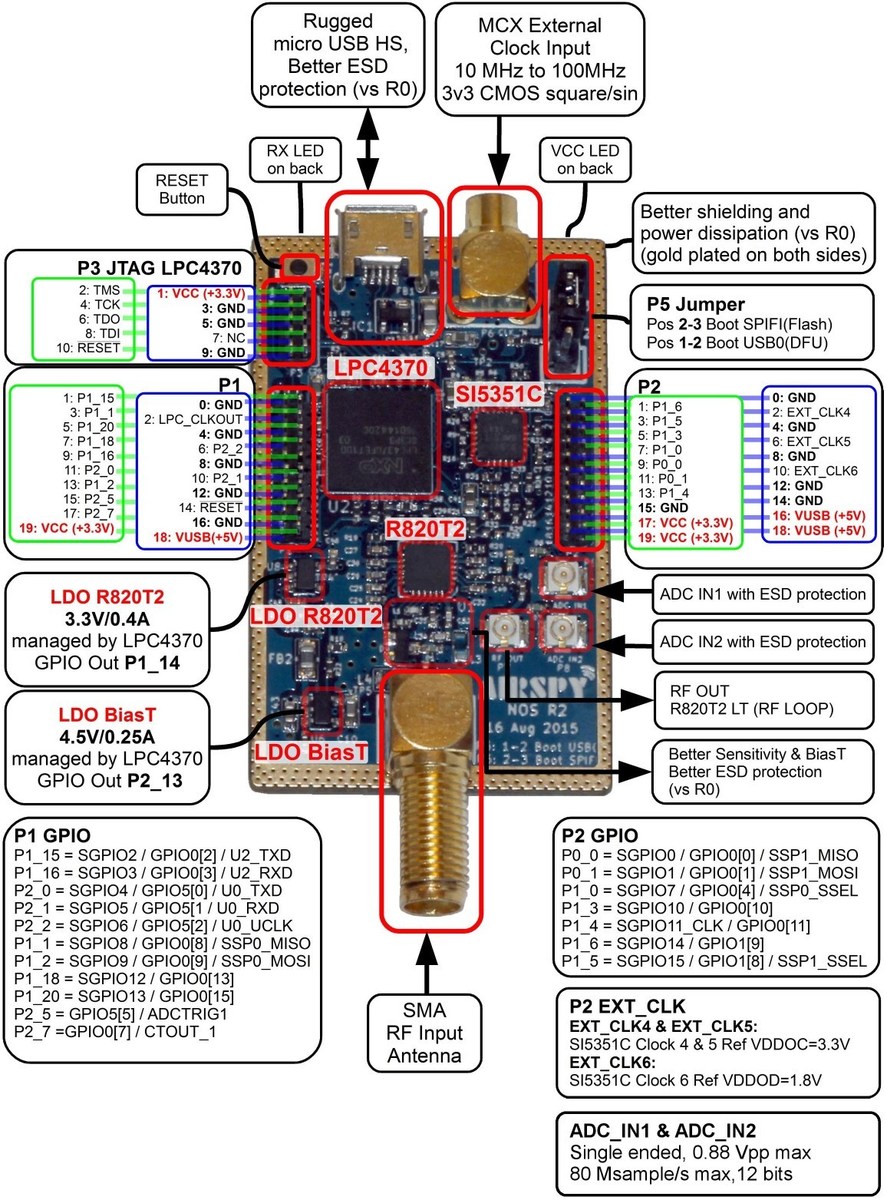

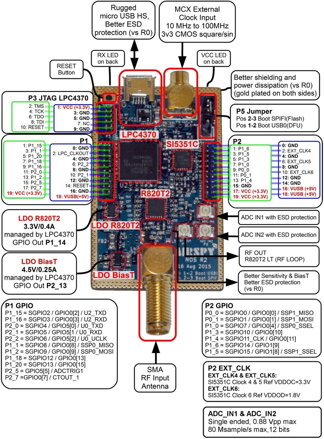

Pin and Port Assignments:

  • AirSpy NOS R2 Pin Assignment

fdg

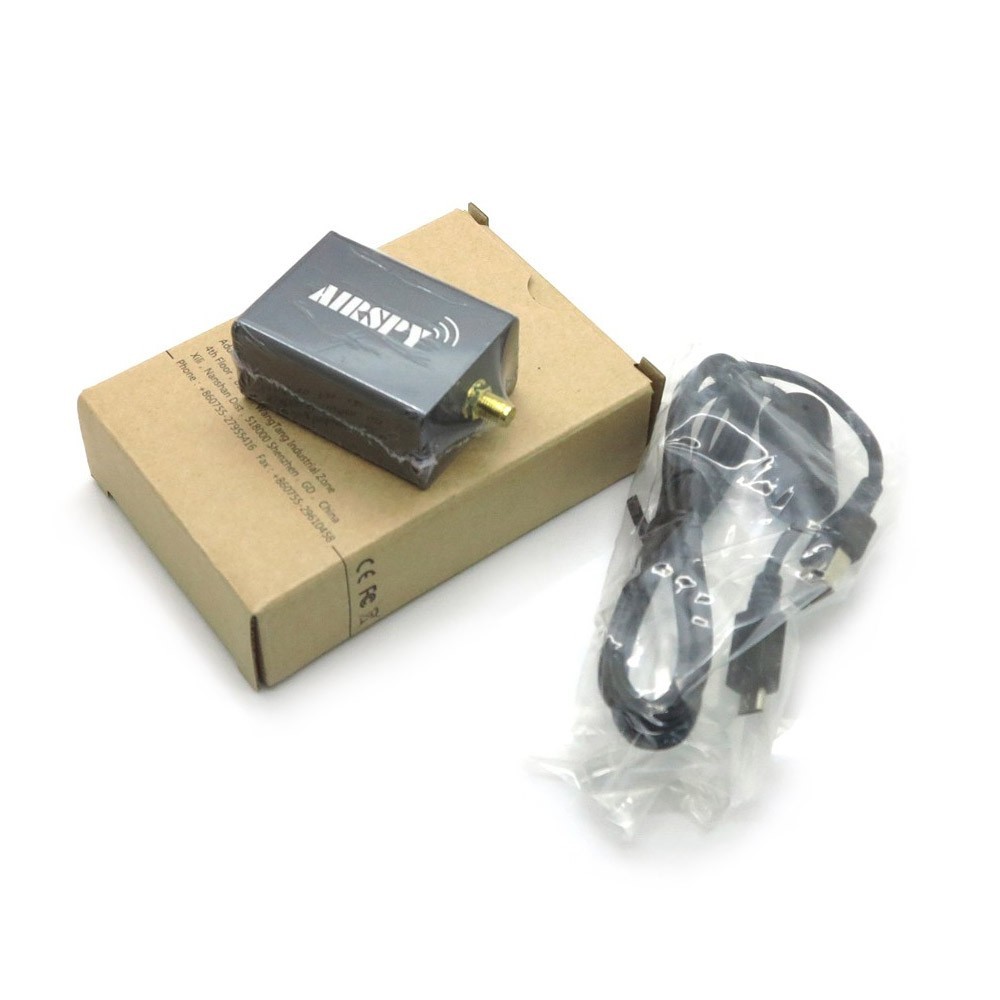

Packing list

  • Airspy R2 *1
  • Micro USB*1
