EG25-G MINIPCIE (EG25GFA-MINIPCIE) Mini PCIe LTE modem modul

EG25-G MINIPCIE (EG25GFA-MINIPCIE) Mini PCIe LTE modem modul

Hodnocení produktu: 5/5 (1x)

Vaše hodnocení:

NOVINKA

EG25-G MINIPCIE (EG25GFA-MINIPCIE) Mini PCIe LTE modem modul

1685 Kč

Import kód: 50593

Dostupnost: Na dotaz

Výrobce: Quectel

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Popis EG25-G MINIPCIE (EG25GFA-MINIPCIE) Mini PCIe LTE modem modul

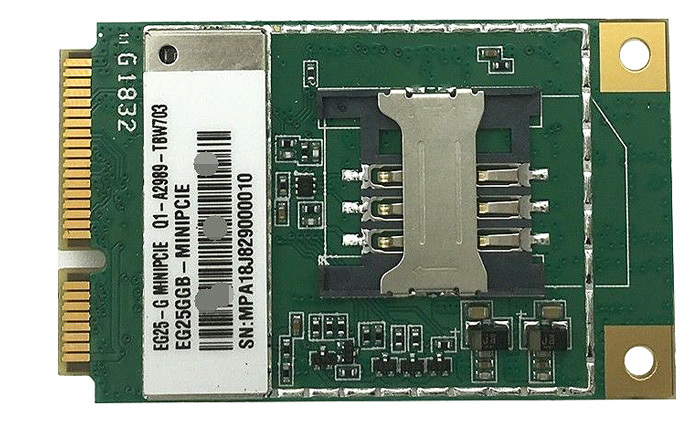

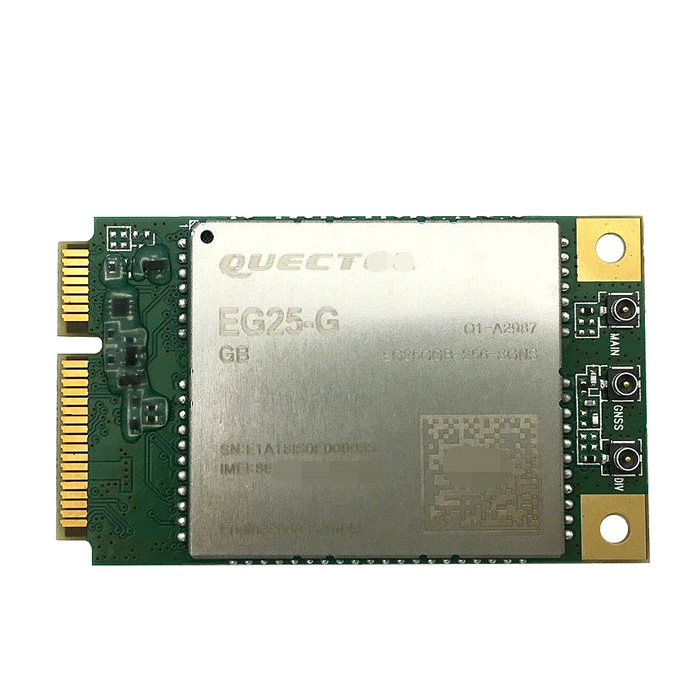

EG25-G MINIPCIE (EG25GFA-MINIPCIE) Multi-mode LTE modul miniPCIe

LTE EG25-G

Quectel EG25-G is a LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates.

Quectel EG25-G is a LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.

Key Benefits

● LTE Cat 4 module optimized for M2M and IoT applications
● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
● Feature refinements: supports DFOTA*, eCall and DTMF
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Specifikace:

  • Application : M2M, IoT
  • Region : Global
  • GNSS Integrated : Yes
  • GNSS Standard : GPS, GLONASS, Beidou, Galileo, QZSS
  • LTE/4G Category : Cat-4
  • LTE/4G Band : FDD(B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28, TDD(B38/B39/B40/B41), WCDMA(B1/B2/B4/B5/B6/B8/B19)
  • MIMO : Yes
  • Package : LGA
  • Datarate Download Link : 150 Mbps
  • Datarate Uplink : 50 Mbps
  • Size : 29.0 × 32.0 × 2.4 mm

Datasheet: https://www.quectel.com/product/eg25g.htmsds
