Popis Orange Pi Lite2 1GB USB 3.0 Android 7.0

It's an open-source single-board computer. It can run Android 7.0 Image. It uses the AllWinner H6 SoC, and has 1GB LPDDR3 (shared with GPU) SDRAM.

Hardware specification:

CPU: H6 Quad-core 64-bit ARM Cortex™-A53

GPU:

  • High-performance multi-core GPU Mali T720
  • OpenGL ES3.1/3.0/2.0/1.1
  • Microsoft DirectX 11 FL9_3
  • ASTC(Adaptive Scalable Texture Compression)
  • Floating point operation greater than 70 GFLOPS

Memory (SDRAM): 1GB LPDDR3 (shared with GPU)

Onboard Storage: TF card (Max. 32GB) /MMC card slot

WIFI+BT: AP6255, IEEE 802.11 AC/bb/g/n, BT4.1

Audio Input: MIC
Audio Output: HDMI 2.0a

Video Input:

  • A CSI input connector Camera
  • Support 8 bit digital camera interface
  • Maximum still capture resolution for parallel interface to 5M
  • Maximum still capture resolution for parallel interface to 5M

Video Decoding:

  • H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
  • H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps
  • VP9,Profile 0/2, 4K@30fps
  • AVS /AVS JIZHUN profile@level 6.0, 1080P@60fps
  • Video Outputs: HDMI 2.0a TX with HDCP 2.2 output
  • Power Source: DC input, USB OTG input can supply power
  • PMU: AXP805
  • USB 2.0 Ports: One USB 2.0 Host, one Micro USB 2.0
  • USB 3.0 Ports: One USB 3.0 Host
  • Low-level peripherals: 26 Pins Header
  • GPIO(1x3) pin: UART, ground.
  • LED: Power led & Status led
  • IR Receiver: Yes
  • Key: Power(K1)
  • Supported OS: Android, Ubuntu, Debian

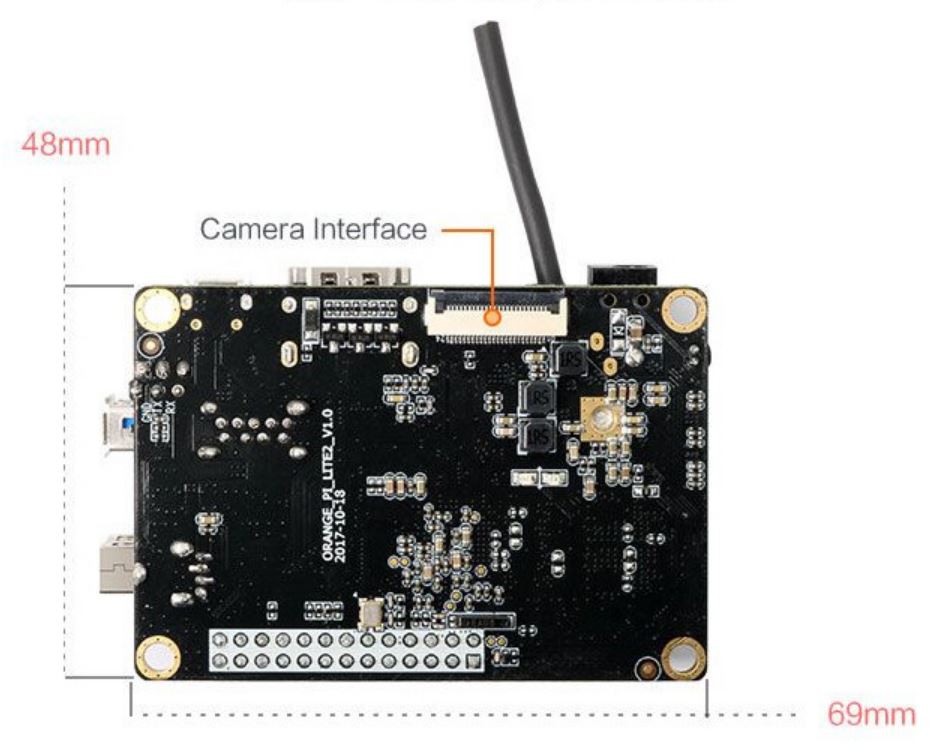

Interface definition:

  • Product size: 69 mm × 48mm
  • Weight: 50 g
