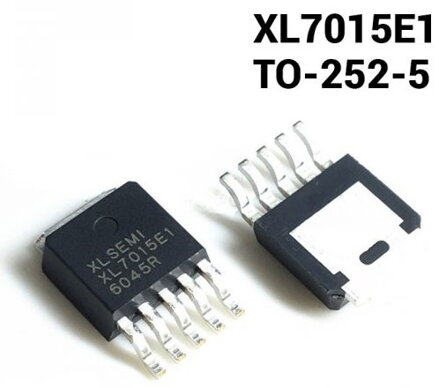

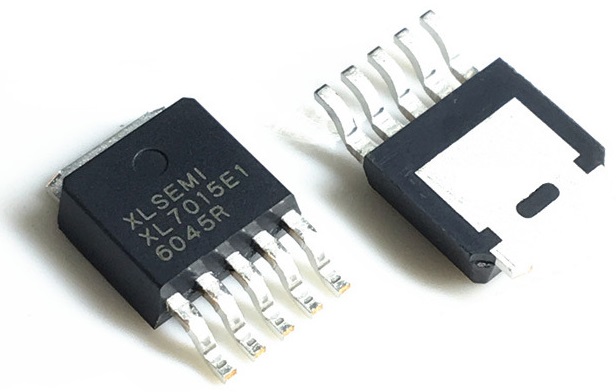

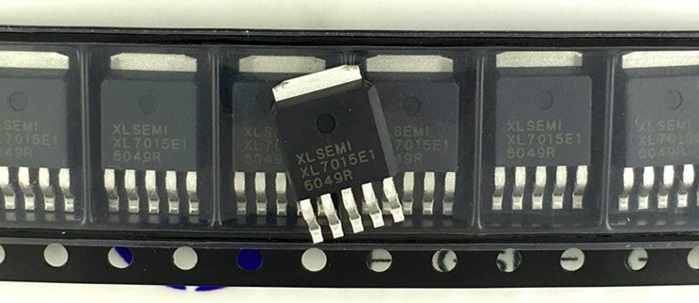

XL7015 0.8A 80V 150KHz Buck DC to DC Converter TO-252-5 XL7015E1

XL7015 0.8A 80V 150KHz Buck DC to DC Converter TO-252-5 XL7015E1

Hodnocení produktu: 5/5 (2x)

Vaše hodnocení:

XL7015 0.8A 80V 150KHz Buck DC to DC Converter TO-252-5 XL7015E1

19 Kč

Import kód: 10623

Dostupnost: Skladem

Výrobce: briv.cz

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Popis XL7015 0.8A 80V 150KHz Buck DC to DC Converter TO-252-5 XL7015E1

XL7015 0.8A 80V 150KHz Buck DC to DC Converter TO-252-5 XL7015E1

Features:

Wide 5V to 80V Operation Voltage
Output Adjustable from 1.25V to 20V
Maximum Duty Cycle 100%
Minimum Drop Out 1V
Fixed 150KHz Switching Frequency
Maximum 0.8A Output Current
Recommend Maximum 0.6A Output

Current At 5V Output,48V Input

Recommend Maximum 0.4A Output

Current At 15V Output,48V Input

Internal Optimize HV Power Transistor
High efficiency up to 85%
Excellent line and load regulation
TTL shutdown capability
Built in thermal shutdown function
Built in output short Protection Function
Built in current limit function
TO252-5L package

Applications:

Ebike Controller Power Supply
Telecom / Networking Equipment
Datasheet: http://www.xlsemi.com/datasheet/XL7015 datasheet-English.pdf
